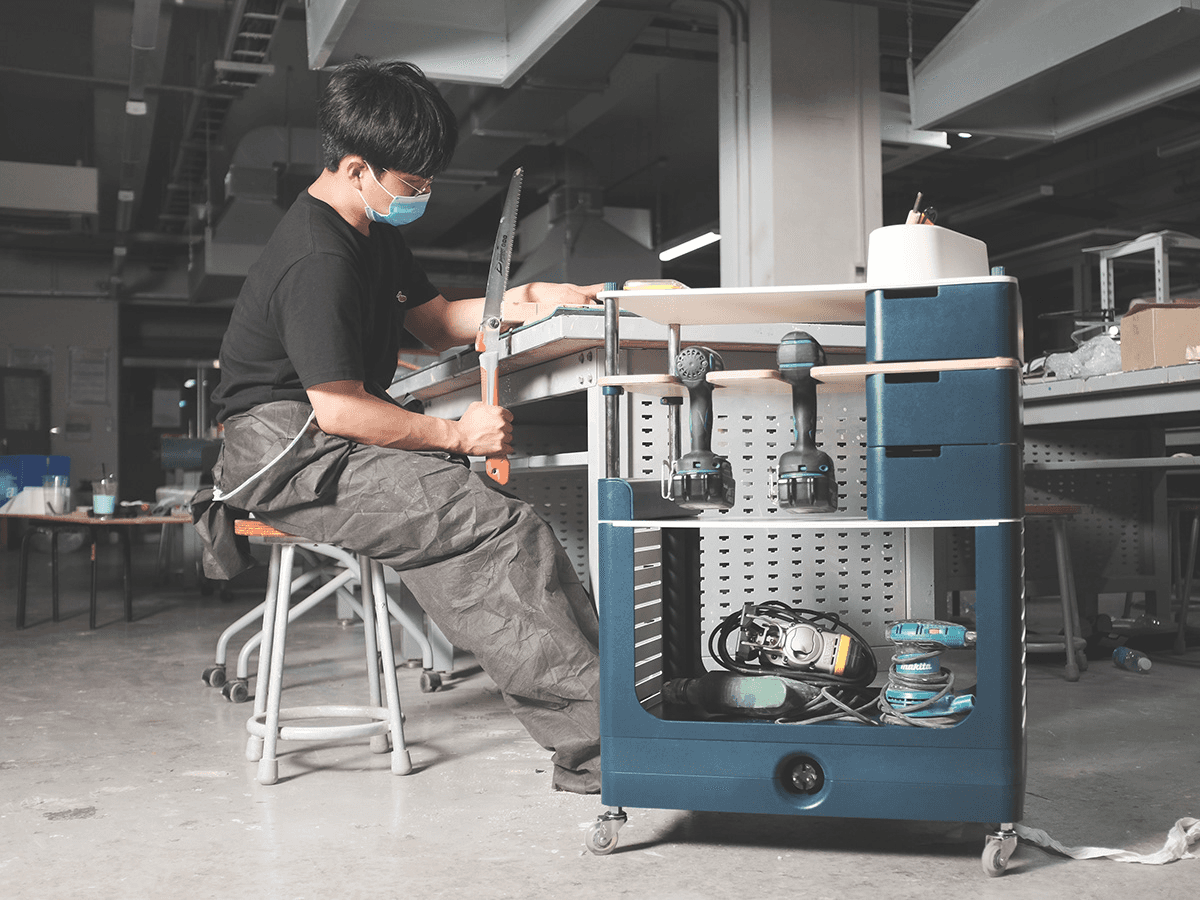

The most common problem in a collaborative workspace is the loss of shared tools and components, often due to users' reluctance to organize and tidy up. To address this issue, we have designed a portable trolley with built-in toolboxes, cable reels, and power strips, ensuring that users can immediately organize their tools.
The most common problem in a collaborative workspace is the loss of shared tools and components, often due to users' reluctance to organize and tidy up. To address this issue, we have designed a portable trolley with built-in toolboxes, cable reels, and power strips, ensuring that users can immediately organize their tools.
The most common problem in a collaborative workspace is the loss of shared tools and components, often due to users' reluctance to organize and tidy up. To address this issue, we have designed a portable trolley with built-in toolboxes, cable reels, and power strips, ensuring that users can immediately organize their tools.
Group / Individual
Group / Individual
Group / Individual
Group Project with Seung Hyun Cho
Group Project with Seung Hyun Cho
Group Project with Seung Hyun Cho
Location
Location
Location
Koreatech (Cheonan, South Korea)
Koreatech (Cheonan, South Korea)
Koreatech (Cheonan, South Korea)
Course
Course
Course
Graduation project (Supervisor : Joo Young Jung)
Graduation project (Supervisor : Joo Young Jung)
Graduation project (Supervisor : Joo Young Jung)
Duration
Duration
Duration
2020. 3 ~ 2020. 6 (4 months)
2020. 3 ~ 2020. 6 (4 months)
2020. 3 ~ 2020. 6 (4 months)

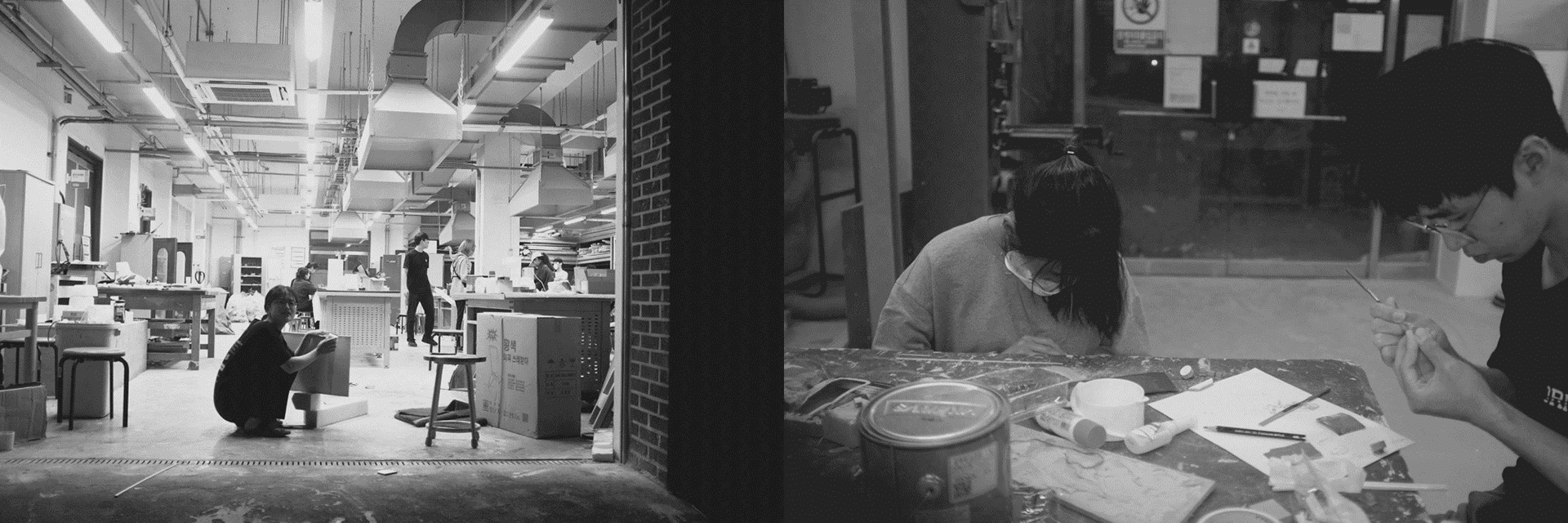

In my alma mater, Koreatech, during the end-of-semester exhibition season, students collaborate in common work space, where they share tools and materials to create prototypes.
In my alma mater, Koreatech, during the end-of-semester exhibition season, students collaborate in common work space, where they share tools and materials to create prototypes.
In my alma mater, Koreatech, during the end-of-semester exhibition season, students collaborate in common work space, where they share tools and materials to create prototypes.

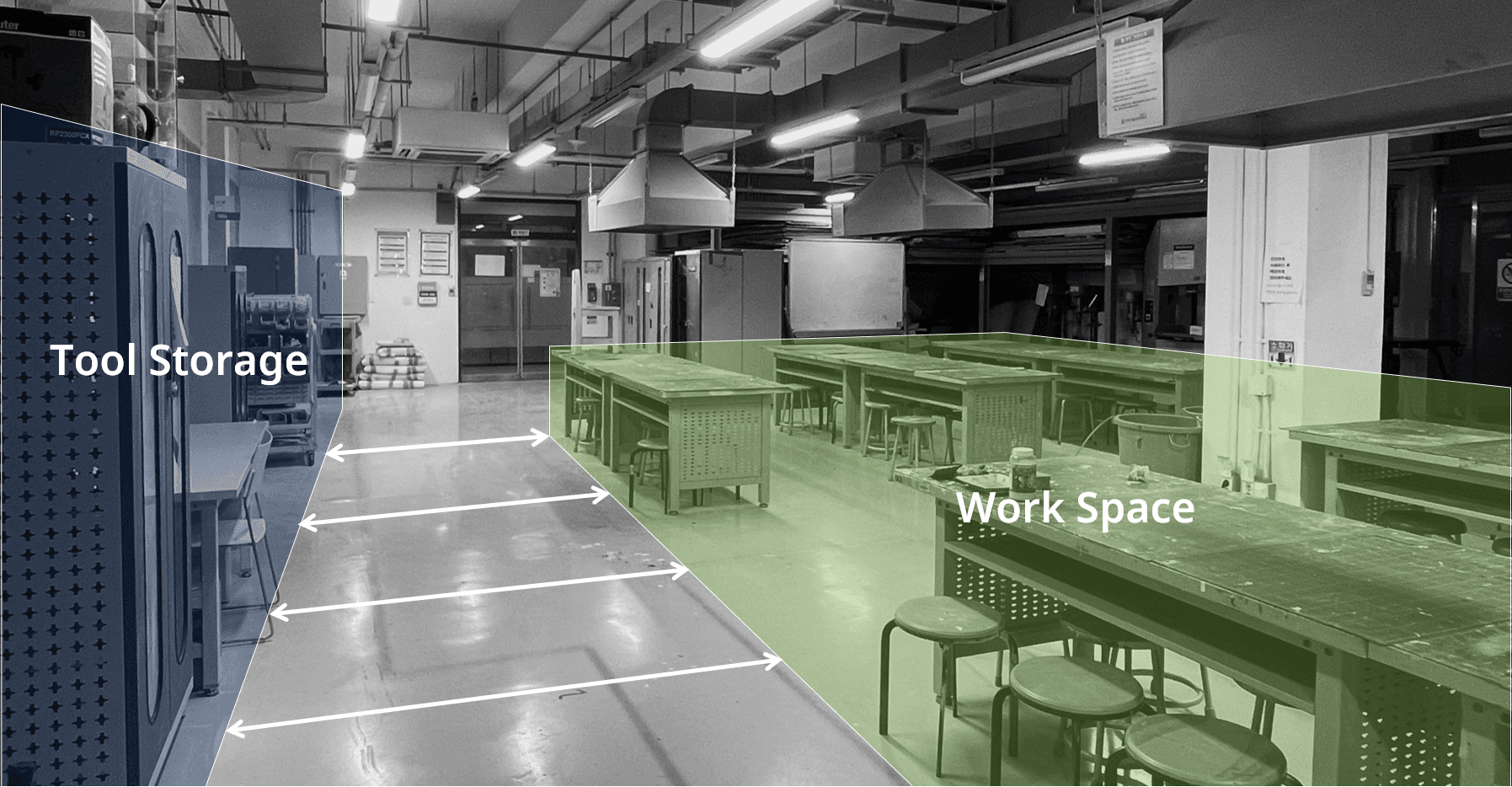

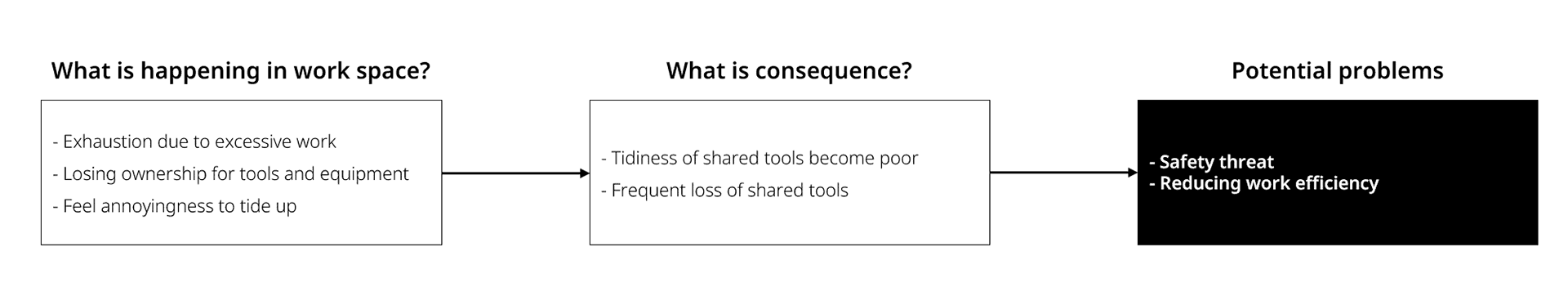

Based on our experiences, we concluded that the annoyingness of the students is due to the distance between the work space and tool storage
\We created a testing environment for our AR design concept by integrating Unity, Arduino, potentiometer, and Meta Quest
\We created a testing environment for our AR design concept by integrating Unity, Arduino, potentiometer, and Meta Quest
Design Direction :
The three key features
Design Direction :
The three key features
Design Direction :
The three key features
The goal is creating the product which is able to resolve the students’ annoyingness to tidy up and to minimize the distance between the workspace and tool. For these goal, we decided the Three key features in design process.
The goal is creating the product which is able to resolve the students’ annoyingness to tidy up and to minimize the distance between the workspace and tool. For these goal, we decided the Three key features in design process.
The goal is creating the product which is able to resolve the students’ annoyingness to tidy up and to minimize the distance between the workspace and tool. For these goal, we decided the Three key features in design process.
Universal Storage :
Ensure to store and use a wide variety of tools and materials
Universal Storage :
Ensure to store and use a wide variety of tools and materials
Universal Storage :
Ensure to store and use a wide variety of tools and materials
Mobility :
Make it possible to move according to the worker’s location rather than being fixed in one place and to reduce the distance between the workspace and storage area
Mobility :
Make it possible to move according to the worker’s location rather than being fixed in one place and to reduce the distance between the workspace and storage area
Mobility :
Make it possible to move according to the worker’s location rather than being fixed in one place and to reduce the distance between the workspace and storage area
Built-in Outlet :
By incorporating a multi-outlet extension, we eliminate location constraints when using power tools that require a socket, and enable immediate storage of the product after use
Built-in Outlet :
By incorporating a multi-outlet extension, we eliminate location constraints when using power tools that require a socket, and enable immediate storage of the product after use
Built-in Outlet :
By incorporating a multi-outlet extension, we eliminate location constraints when using power tools that require a socket, and enable immediate storage of the product after use

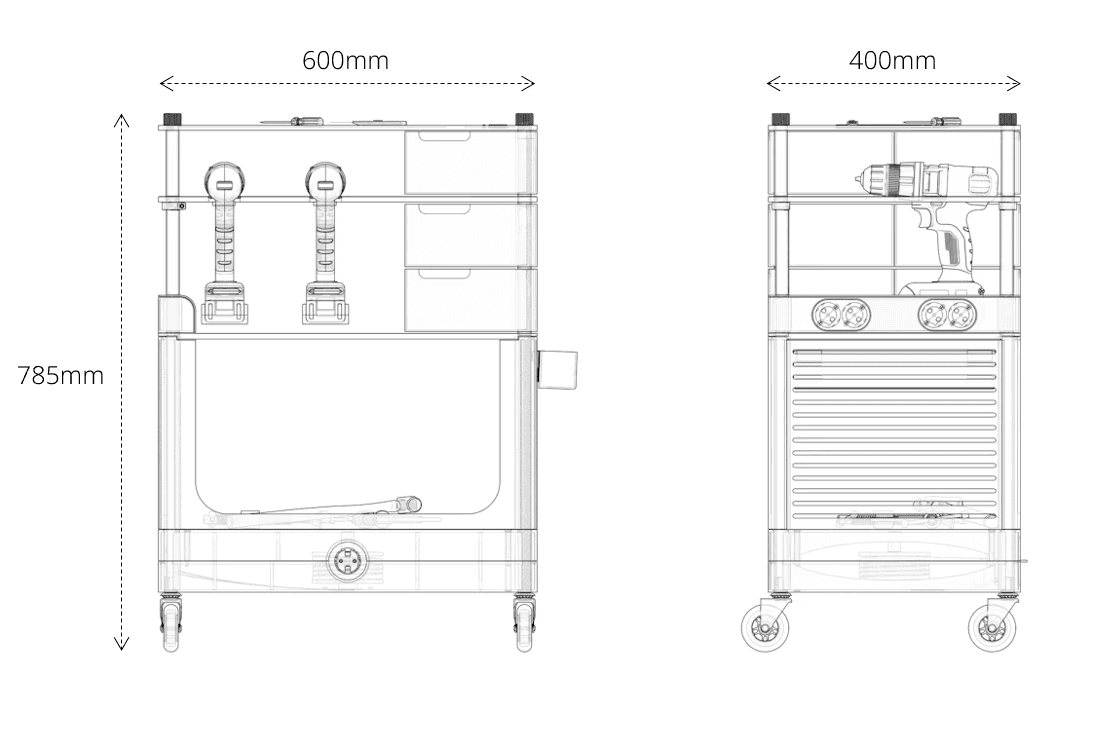

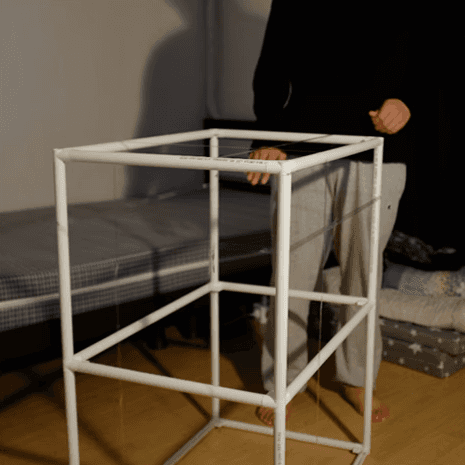

Finding proper dimenstion and ratio by making mockup
Finding proper dimenstion and ratio by making mockup
Finding proper dimenstion and ratio by making mockup
Exploring the mechanism and the dimension of outlet
Exploring the mechanism and the dimension of outlet
Exploring the mechanism and the dimension of outlet
Exploring the mechanism of automatic rewinding cable (For easy arrangement of cable)
Exploring the mechanism of automatic rewinding cable (For easy arrangement of cable)
Exploring the mechanism of automatic rewinding cable (For easy arrangement of cable)
Before concretizing the design, a study was conducted to investigate the size and functionality of the product
Before concretizing the design, a study was conducted to investigate the size and functionality of the product
Before concretizing the design, a study was conducted to investigate the size and functionality of the product

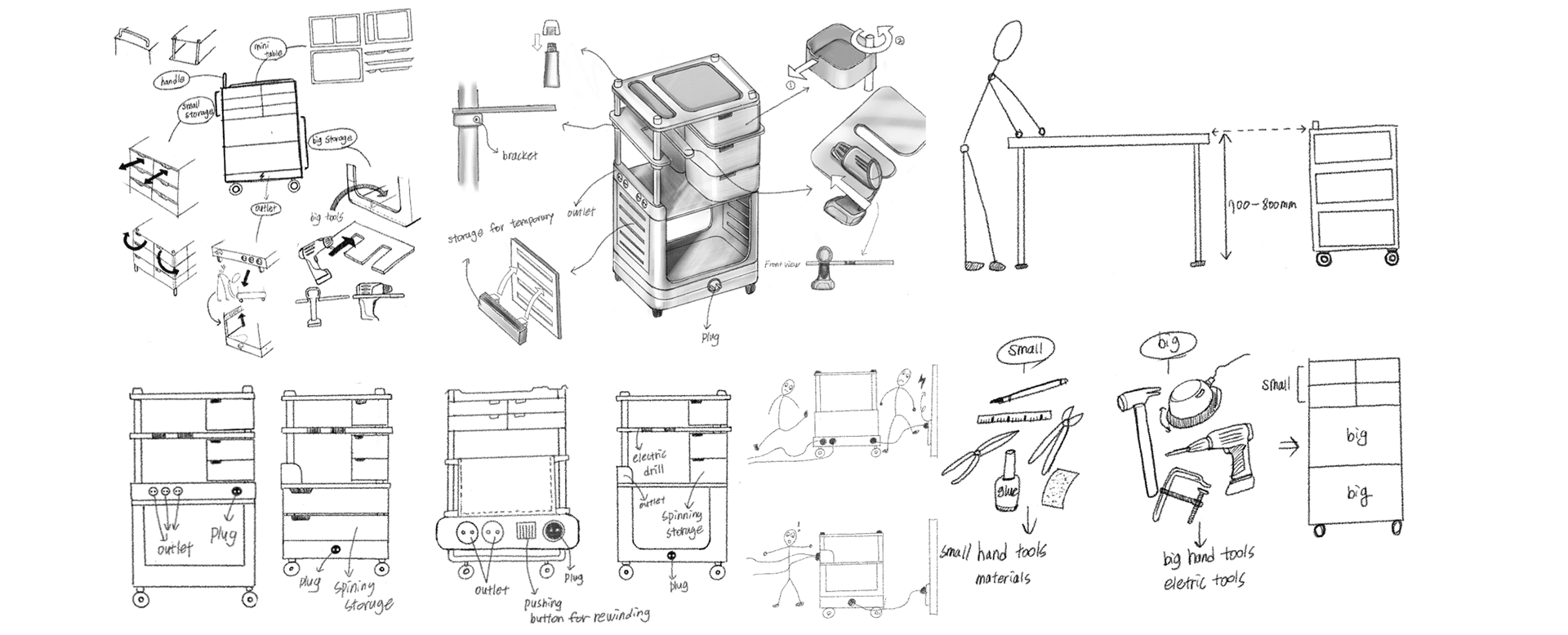

To determine the mechanical elements, structure, and positions/arrangements of each part of the product, idea sketches were conducted
To determine the mechanical elements, structure, and positions/arrangements of each part of the product, idea sketches were conducted
To determine the mechanical elements, structure, and positions/arrangements of each part of the product, idea sketches were conducted

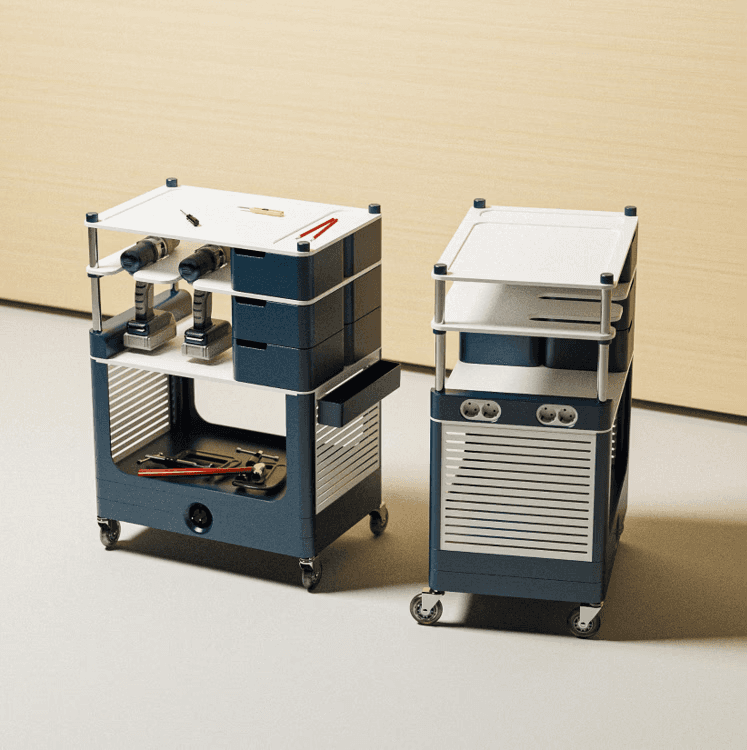

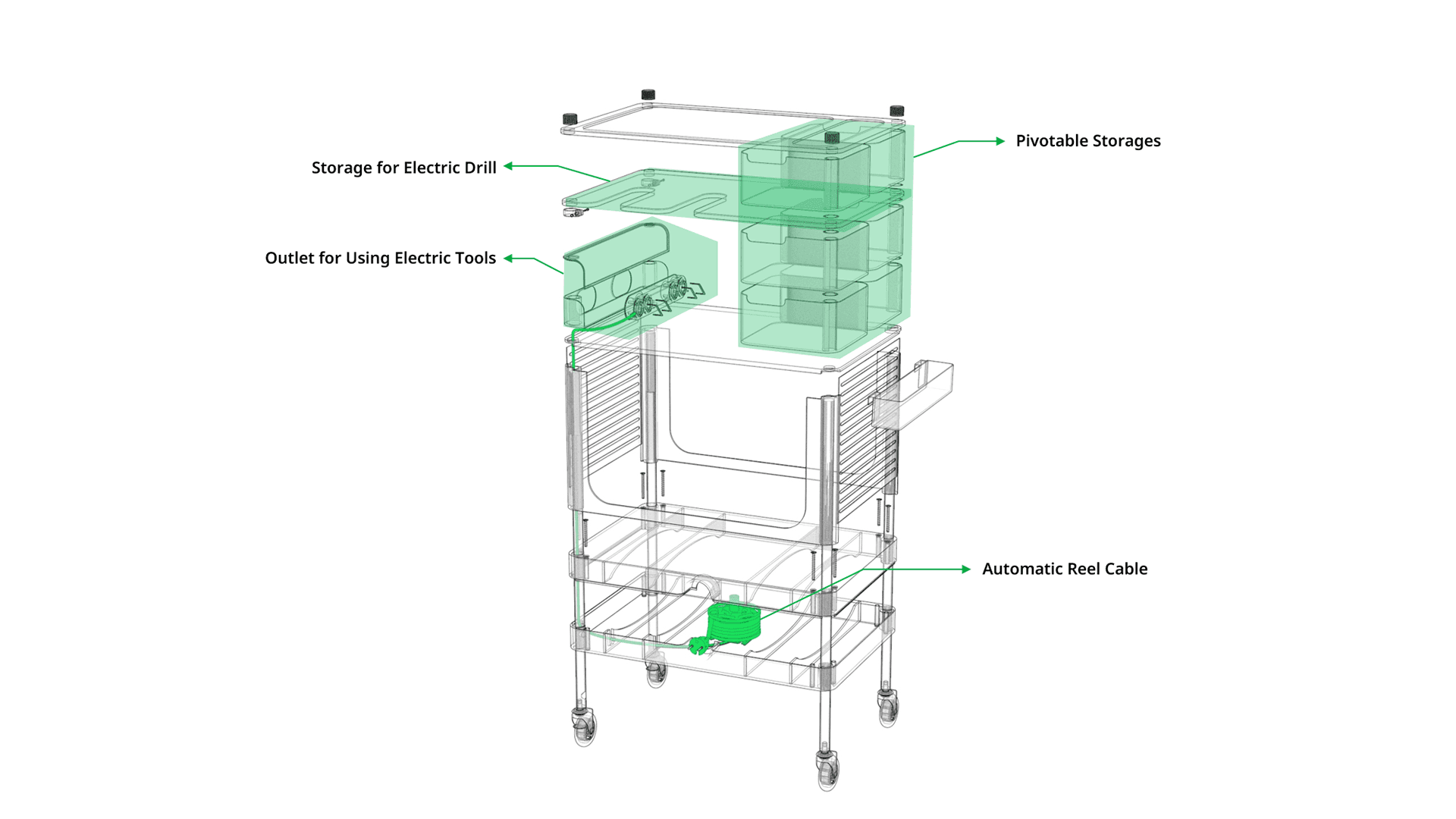

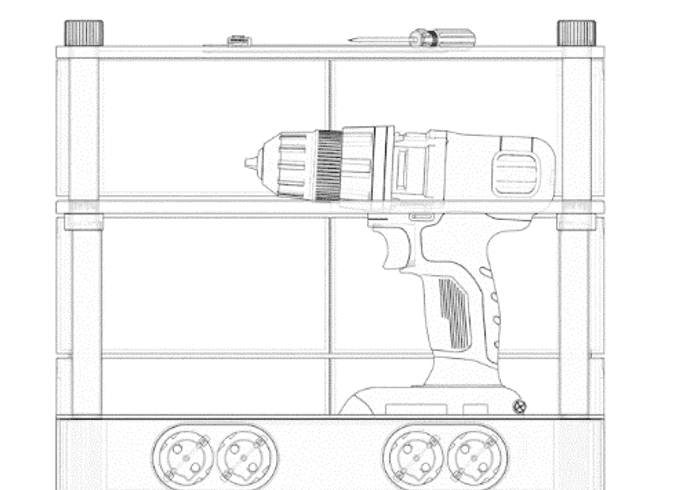

Main parts of trolley
(Exploded view)
Main parts of trolley
(Exploded view)
Main parts of trolley
(Exploded view)

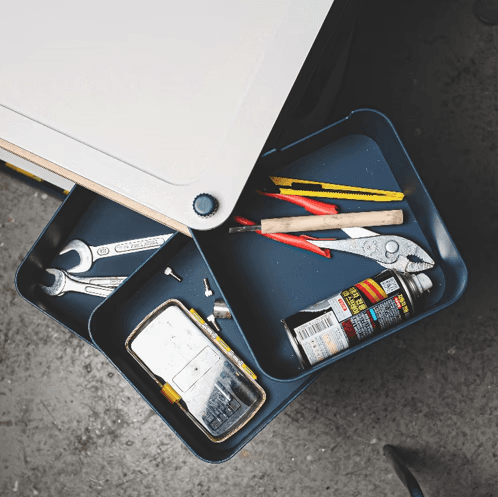

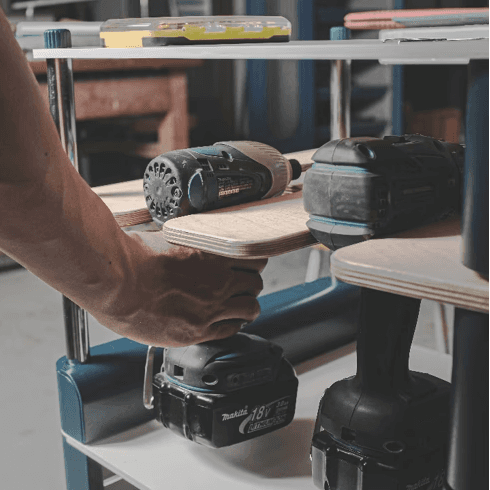

The storage for electric drills
The storage for
electric drills
The storage for electric drills
A compartment for convenient retrieval and storage of both power drills and impact drivers
A compartment for convenient retrieval and storage of both power drills and impact drivers
A compartment for convenient retrieval and storage of both power drills and impact drivers

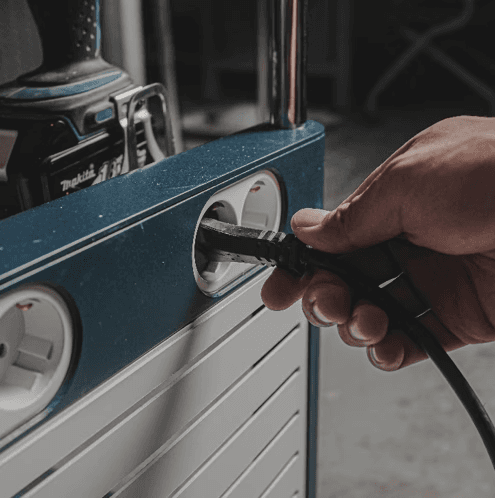

Outlet for using electric tools
Outlet for using
electric tools
Outlet for using electric tools

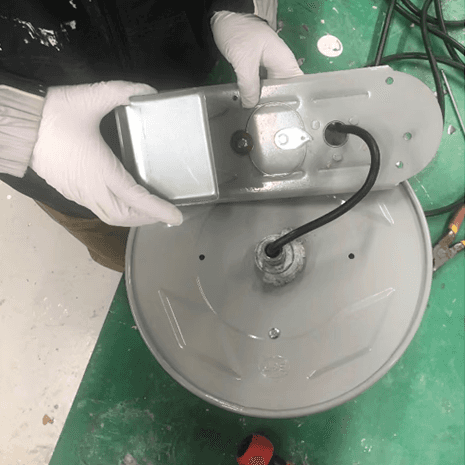

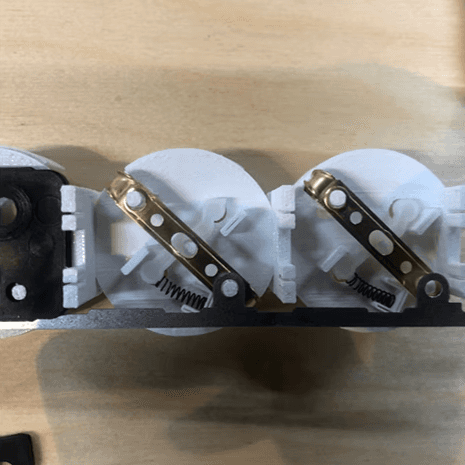

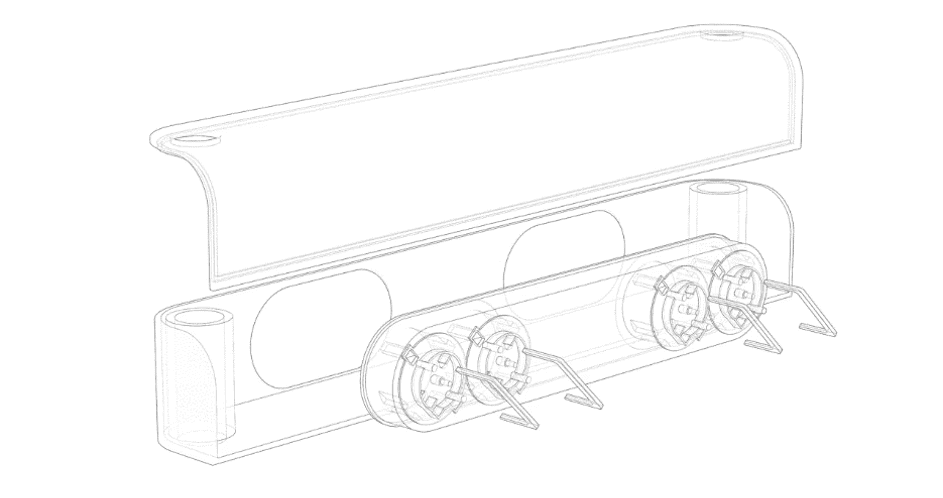

I reverse-engineered commercially available power strip, allowing for the utilization of actual power strip components in the design
I reverse-engineered commercially available power strip, allowing for the utilization of actual power strip components in the design
I reverse-engineered commercially available power strip, allowing for the utilization of actual power strip components in the design

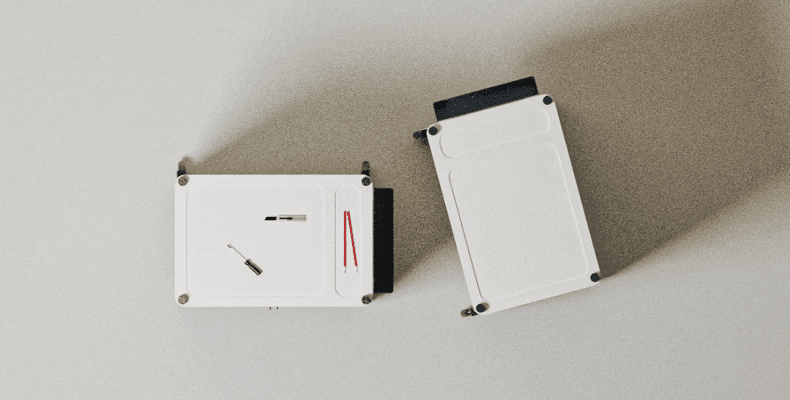

Pivotable storages
Pivotable
storages
Pivotable storages

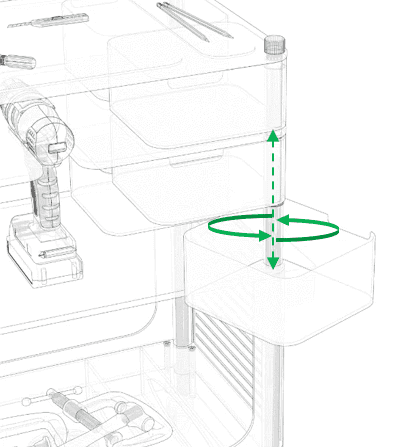

Through the pipe, Pivotable storages are assembled and able to rotate separately
Through the pipe, Pivotable storages are assembled and able to rotate separately
Through the pipe, Pivotable storages are assembled and able to rotate separately
Automatic reel cable
Automatic
reel cable
Automatic reel cable

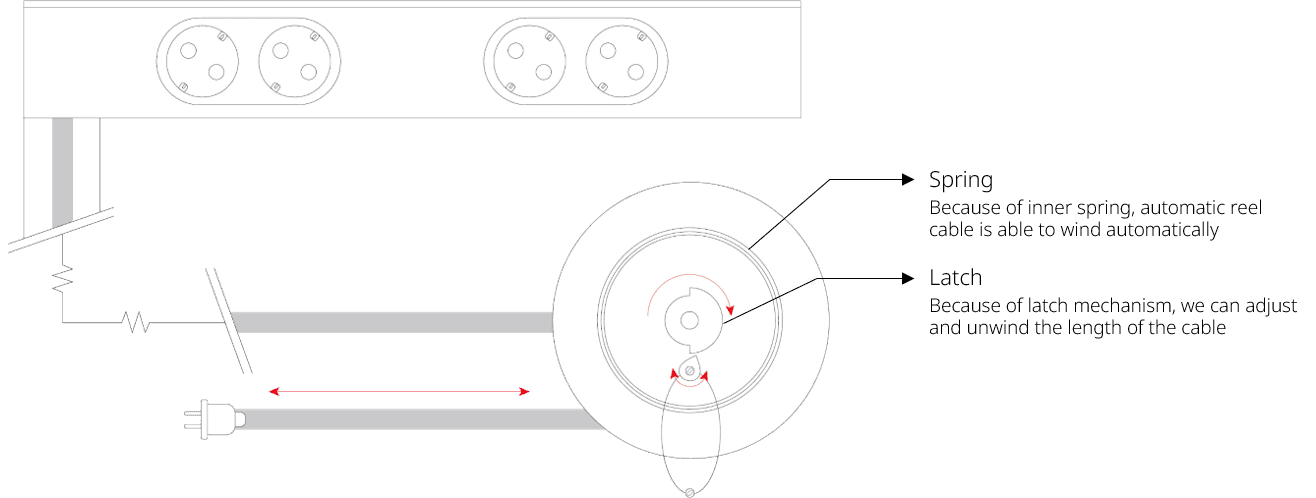

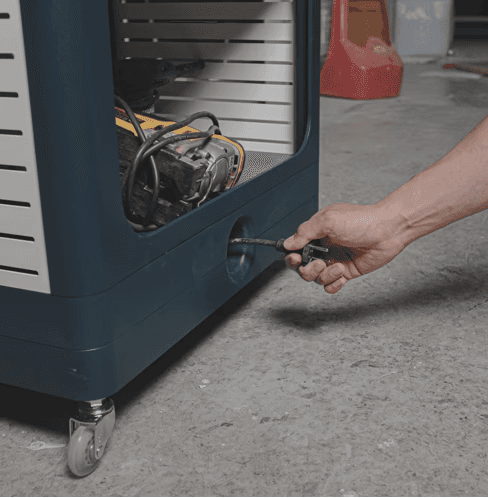

The automatic reel cable consists of a spring that enables coiling of the wire and a latch that assists in pulling out the cable to the desired length
The automatic reel cable consists of a spring that enables coiling of the wire and a latch that assists in pulling out the cable to the desired length
The automatic reel cable consists of a spring that enables coiling of the wire and a latch that assists in pulling out the cable to the desired length
Additional storage
Additional
storage
Additional storage

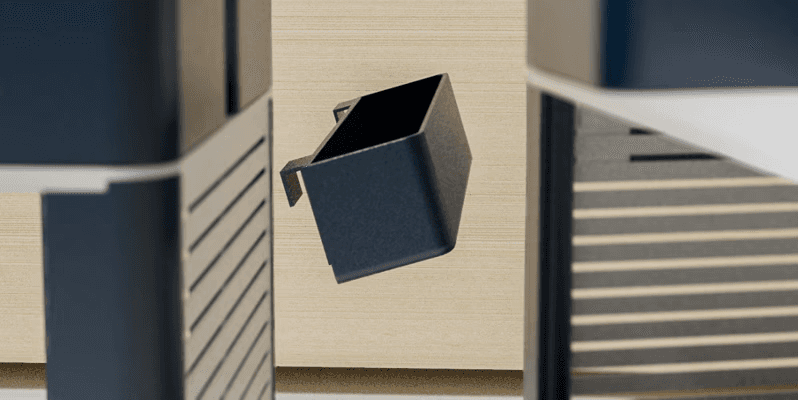

By hook shaped latch, the various storages are able to be attached to the punching plate which is located in side of trolley
By hook shaped latch, the various storages are able to be attached to the punching plate which is located in side of trolley
By hook shaped latch, the various storages are able to be attached to the punching plate which is located in side of trolley

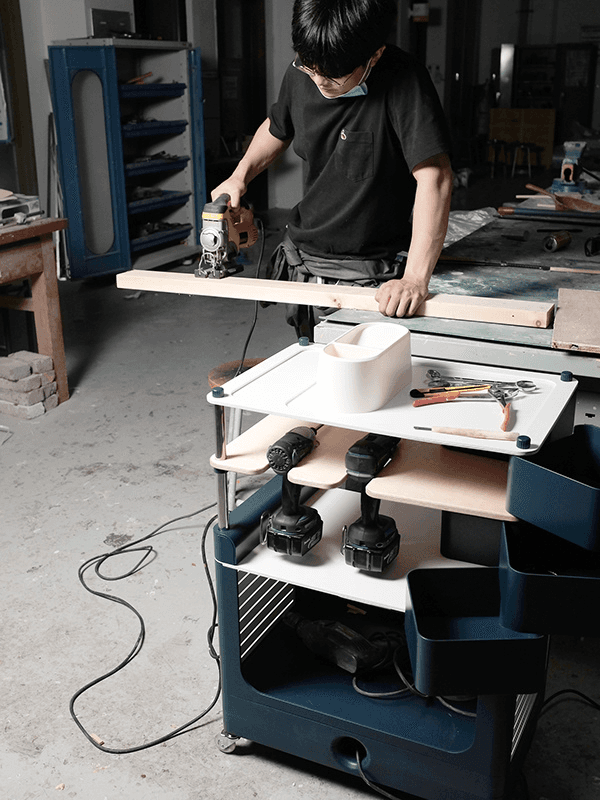

Temporary work table
Temporary
work table
Temporary work table
Height of table is simillar to the normal table in the common work space.
Height of table is simillar to the normal table in the common work space.
Height of table is simillar to the normal table in the common work space.

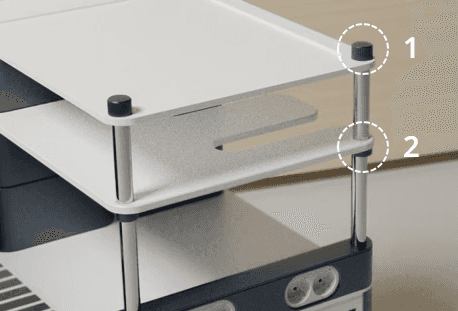

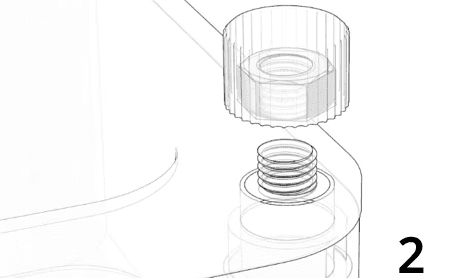

Cap for fixing all parts (1) &
Bracket for supporting the plate (2)
Cap for fixing parts (1) &
Bracket for supporting the plate (2)
Cap for fixing all parts (1) &
Bracket for supporting the plate (2)

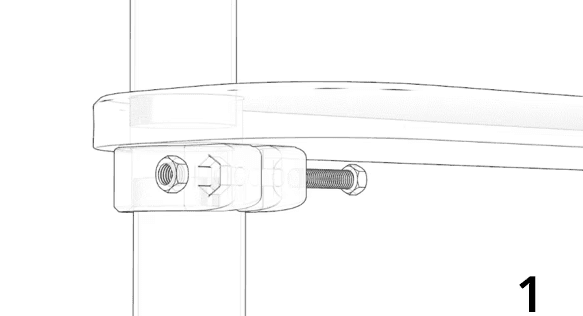

1. A bracket with bolts and nuts used to support a plate for storing an electric drill on a pipe.
1. A bracket with bolts and nuts used to support a plate for storing an electric drill on a pipe.
1. A bracket with bolts and nuts used to support a plate for storing an electric drill on a pipe.
2. All the parts are attached to the pipe, and these serve as caps for fixing them in place.
2. All the parts are attached to the pipe, and these serve as caps for fixing them in place.
2. All the parts are attached to the pipe, and these serve as caps for fixing them in place.
